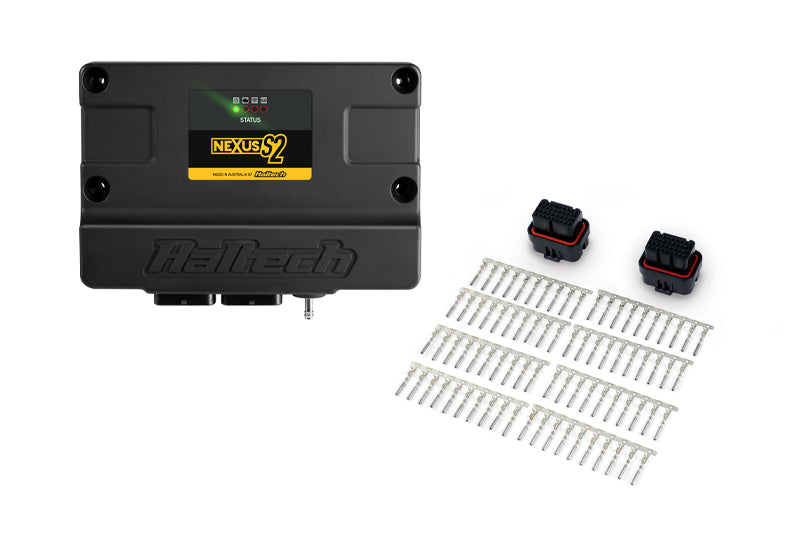

Nexus S2 ECU + Plug and Pin Set
Nexus S2 ECU + Plug and Pin Set
Regular price
£1,493.00 GBP
Regular price
Sale price
£1,493.00 GBP
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
ECU OVERVIEW

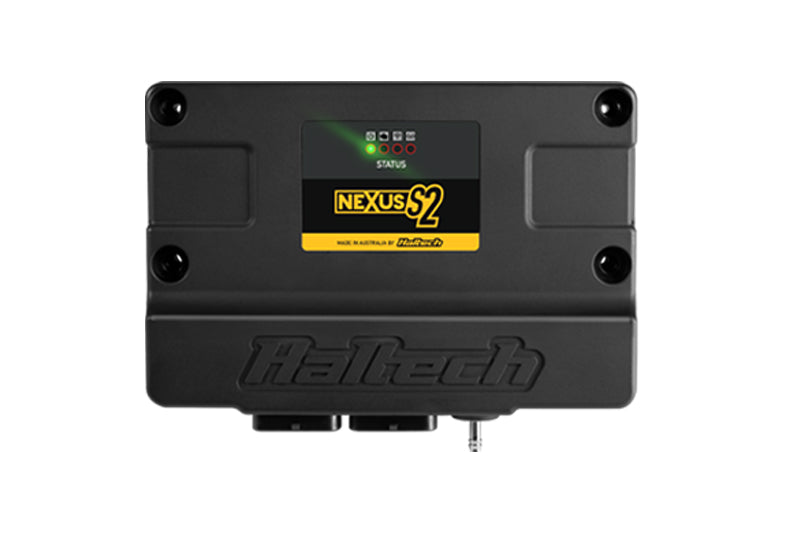

Haltech's Nexus S2 is the successor to the acclaimed Elite 1500, offering a serious upgrade in performance and functionality. The S2 combines all the classic functionality of the Elite 1500 with new features and the superior processing power of the successful Nexus platform.
- 4 x peak/hold injector drivers (can be used as low side drive outputs)
- 4 x low current ignition outputs (can be used as low side drive outputs)
- 6 x low side drive outputs, PWM capable (DPOs)
- 4 x push-pull / half bridge outputs (8A, PWM capable), eg for electronic throttle
- 1 x ECR output
- 11 x 0-5V analog inputs with redundancy for electronic throttle and switchable 5V pullup
- Trigger and home inputs with differential inputs, adjustable thresholds and glitch filters
- 6 x synchronous pulsed inputs, zero crossing or adjustable thresholds - cam sensor inputs, frequency inputs or 0-5V analog inputs
- 1 x on-board wideband controller, supporting NTK and LSU4.9
- 1 x on-board 4 bar MAP sensor
- 2 x CAN ports with switchable termination
Superseal connector
- 34 Pin (Key 3) Plug and Pins
- 34 Pin (Key 2) Plug and Pins
ECU FEATURES- Controlled via NSP (Nexus Software Programmer)
- Long Term Learning
- Stepper Motor Control
- 4D Closed Loop Boost Control
- Closed Loop CO2 Control
- Rotational Idle
- Launch Control
- Traction Control
- Anti-Lag
- Dual Knock Control
- Trans Brake Control
- Race Timer
- Multi Stage Fuel Injection
- Multi-level Engine Protection
- 6 Stage Nitrous Control
- 4-sensor variable cam control
- Intake Air Bleed Control
- Flat Shift Control
- Shock Travel & Ride Height Control
- Advanced Torque Management
- On-board Wi-Fi
- On-board datalogging (128MB)
AUTOMATIC TRANSMISSION CONTROL- Ford AODE/4R70W
- GM 4L60E
- GM 4L80E
- Toyota A340E
- Lenco
- Liberty
