DODSON Heavy Duty Gearset GR6

THIS PRODUCT  IS "PRODEALER ONLY" THIS MEANS IT IS ONLY AVAILABLE TO BE FITTED IN OUR WORKSHOP OR SOLD TO A DODSON PRO DEALER.

(WE ALWAYS HAVE STOCK UN THE UK)

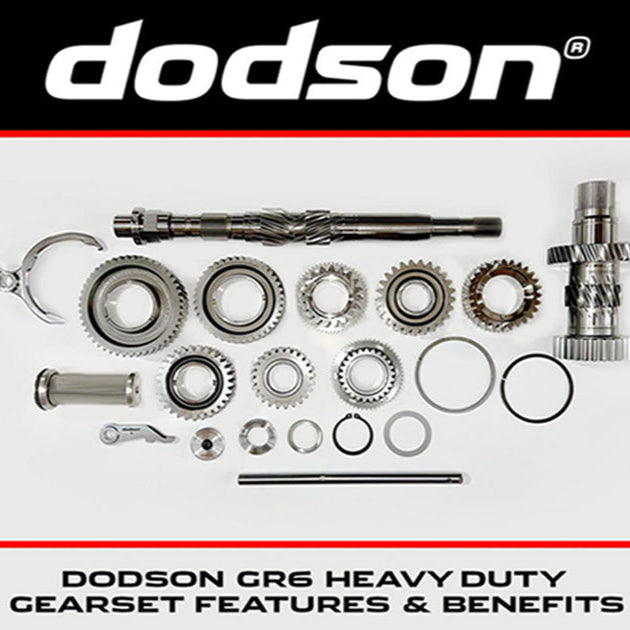

Here at Dodson, we have meticulously crafted our GR6 HEAVY DUTY 1-6 GEARSET (DMS-7932) to not only exceed industry standards but also to include a range of components that set us apart from the competition. Our all-inclusive kit is designed to provide unparalleled performance, reliability, and ease of installation at an economic price point, making this the ultimate choice for mid-level builds in the 1,000 to 1,500 horsepower range.

The following components are provided in the all-inclusive kit:

---

GR6 HEAVY DUTY 1-6 GEARS & MAIN SHAFT:

• Case hardened, steel alloy, precision ground gearset specially designed to increase strength and resist fatigue.

GR6 MECHANICAL CIRCLIP #2, OUTPUT SHAFT (DMS-0959):

• Facilitates easy gearset disassembly.
• Fastens more robustly than the OEM circlip.

GR6 OUTPUT SHAFT END FLOAT SHIM (DMS-0960):

• Eliminates any gap between the gearset and OE thrust plate which may arise due to variations in the OE components.
• Required only with the OE thrust plate, as the Dodson thrust plate doesn’t require this shim.

GR6 REUSABLE METAL MESH CANISTER TRANSMISSION FILTER (DMS-2810):

• Provides a cost-effective replacement versus expensive single-use OEM filters.
• Reusable on a go-forward basis.

GR6 EXTREME DUTY GEAR SELECTOR SHAFT (3/5) (DMS-5707):

• Hollow OE selector shafts can bend, solid high strength steel Dodson replacements are rigid.
• Dodson selector shafts are designed specifically for the Dodson gearset, with a 3mm offset.

GR6 PARK PAWL (DMS-5708):

• Designed to be narrower, accommodating the wider gears in the Dodson gearset.

GR6 FWD GEAR LOCK (DMS-7133):

• Serves as a preventive measure against the circlip pushing the splines off the shaft due to thrust forces.

GR6 HEAVY DUTY BILLET SHIFT FORK (3/5) (DMS-7909):

• Significantly stronger than the OE fork.
• Compatible with the Dodson gearset selector shaft and 3mm offset.
• Wear-resistant surface finish

VARIOUS CIRCLIPS:

• Replacing worn or damaged OE circlips ensures the overall integrity and functionality of the gearset.

For more information about the kit, please contact sales@acspeedtech.com
