COMPSTAR ROD B16 HONDA SETS OF 4

COMPSTAR ROD B16 HONDA SETS OF 4

Regular price £111.19 GBP
Regular price Sale price £111.19 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

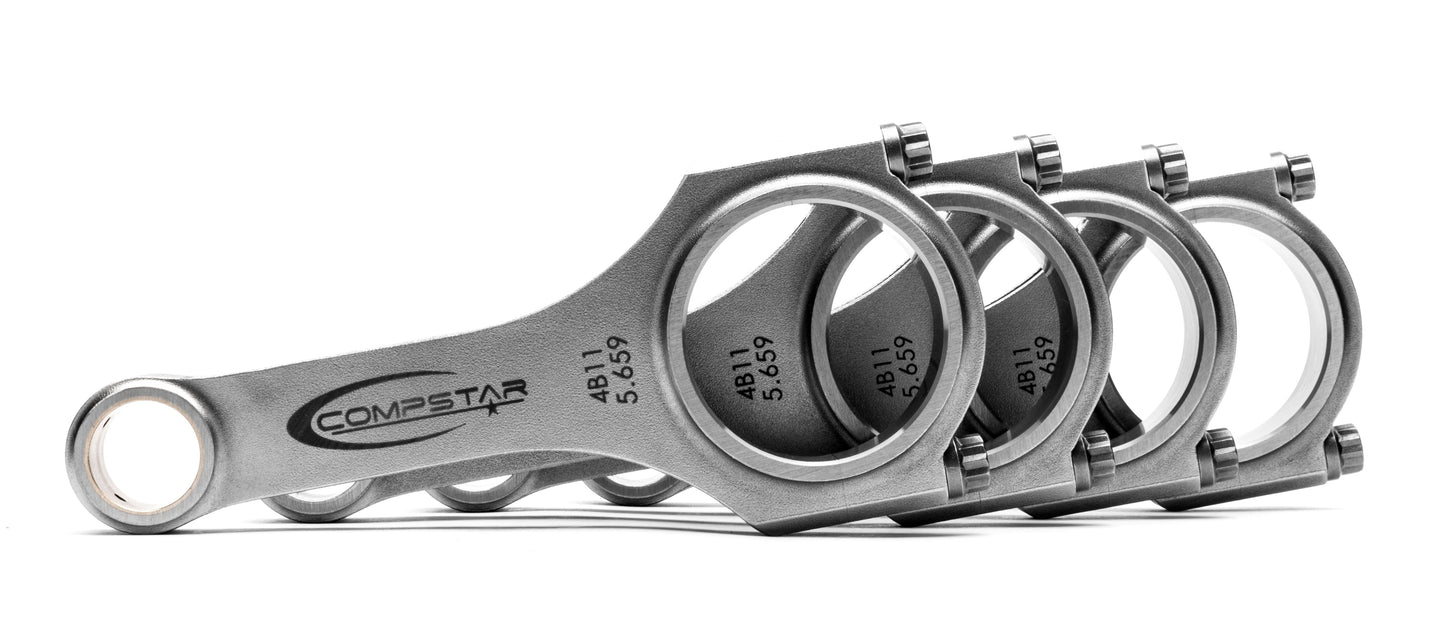

Connecting Rod, Compstar, Forged 4340 Steel, H-Beam, Cap Screw, ARP 2000, Bushed, for use on Honda®, 1.6L, Set of 4

Make:
HONDA
Beginning Year:
1994
Ending Year:
1995
Engine Type:
L4
Engine Family:
Honda/Acura 4-cylinder
Engine Size:
1.6L/1590cc
Make:
HONDA
Beginning Year:
1996
Ending Year:
2000
Engine Type:
L4
Engine Family:
Honda/Acura 4-cylinder
Engine Size:
1.6L/1595cc
Brand:
Callies Performance
Manufacturer's Part Number:
C22101
Part Type:
Product Line:
Callies Compstar Connecting Rods
Summit Racing Part Number:
CPI-C22101
Connecting Rod Length Centre to Centre (in.):
5.290 in.
Connecting Rod Beam Style:
H-beam
Connecting Rod Material:
Forged 4340 steel
Wrist Pin Style:
Floating
Pin End Bore Diameter:
0.828 in.
Rod Journal Diameter (in.):
1.771
Big End Bore Diameter (in.):
1.8900
Quantity:
Sold as a set of 4.
Cap Retention Style:
Cap screw
Big End Width (in.):
0.935
Clearanced for Stroker:
Yes
Connecting Rod Bolt Brand:
ARP
Connecting Rod Bolt Diameter:
3/8 in.
Connecting Rod Bolt Material:
ARP2000 alloy
Fastener Tensile Strength (psi):
180,000 psi
Connecting Rod Bolt Head Style:
12-point
Advertised Horsepower Rating:
700 hp
Weight Matched Set:
Yes
Remanufactured:
No
Magnafluxed:
Yes
Connecting Rod Colour:
Shot-peened

Callies Compstar Connecting Rods

Better by design, Callies Compstar connecting rods offer high performance and a trouble-free engine build. Concerns about out-of-round, big-end bore sizing, repeatability, time-saving details, and upgrade costs are a thing of the past. Their forged 4340 steel rods are put through a lengthy stress-relief process and burnishing of threads and bolt spot faces to ensure dimensional repeatability, no matter how many times rods are torn down and reassembled. Pin bushings are chamfered and honed, parting line edges are generously chamfered, and bearing locating tab slots are deburred, all in an effort to save you time and trouble. ARP 2000 bolts and stroker clearances are standard with Compstar rods. Choose either their original H-beam design or heavy-duty I-beam designed rods. For high performance use right out of the box, plus value and peace of mind, try Callies Compstar connecting rods.
