COMPSTAR EXTREME ROD 6.000/2.000/.927

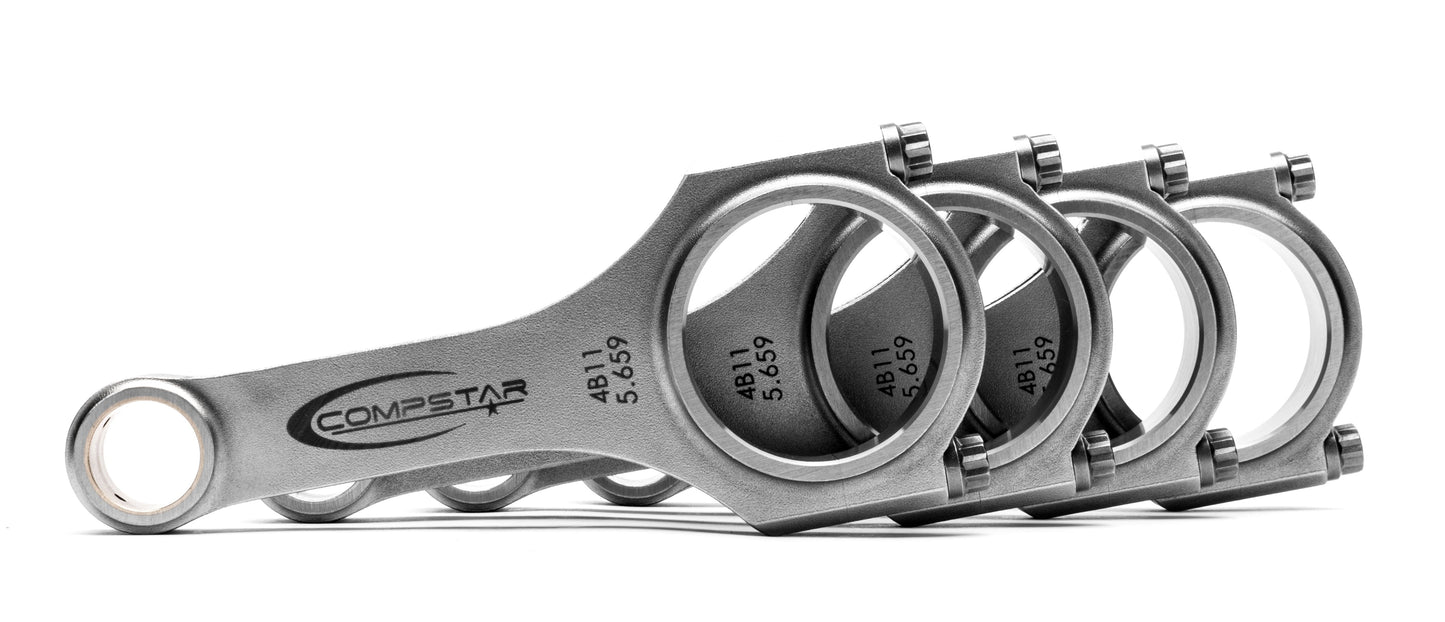

• Compstar Xtreme Connecting Rods

  The next step in the Compstar line up. All the quality, reliability and workmanship you have relied upon for years from the Compstar line up is taken to the Xtreme. Specifically designed for power adder and diesel applications. The Compstar Xtreme utilizes the same proven 4340 material and ARP 2000 or L19 fasteners. Strength is added by thickening up the flanges of the H beam and a reduced depth of cut towards the center of the rod. Then non-essential weight is taken out of the beam to help keep the overall weight of this rod in check.

Compstar Xtreme

Standard Features

• • Manufactured from 4340 alloy steel
  • Every rod is finished in our Ohio facility
  • Includes ARP2000 bolts or H11 as standard
  • Increased cross sectional thickness across the beam
  • Intended for high output, boosted applications
  • Duramax rods are drop-in replacements for OEM (’01-’16)




    Xtreme Duramax
    Description		Rod Journal	Pin	Typical Wt.	Part #
    6.418		2.480	34.5 mm	1182g.	CST6418MS0LCAX
    Xtreme Small Block Chevy
    Description		Rod Journal	Pin	Typical Wt.	Part #
    6.000		2.100	.927 in.	628g.	CSA6000DS2A2AX
    6.000		2.000	.927 in.		CSA6000CS2A2AX
    6.125		2.100	.927 in.	650g.	CSA6125DS2A2AX
    Xtreme LS
    Description		Rod Journal	Pin	Typical Wt.	Part #
    6.125		2.100	.927 in.		CSC6125DS2A2AX
    Xtreme Big Block Chevy
    Description		Rod Journal	Pin	Typical Wt.	Part #
    6.385		2.200	.990 in.		CSB6385ES3BDAX
    6.535		2.200	.990 in.		CSB6535ES3BDAX
    6.700		2.200	.990 in.		CSB6700ES3BDAX
